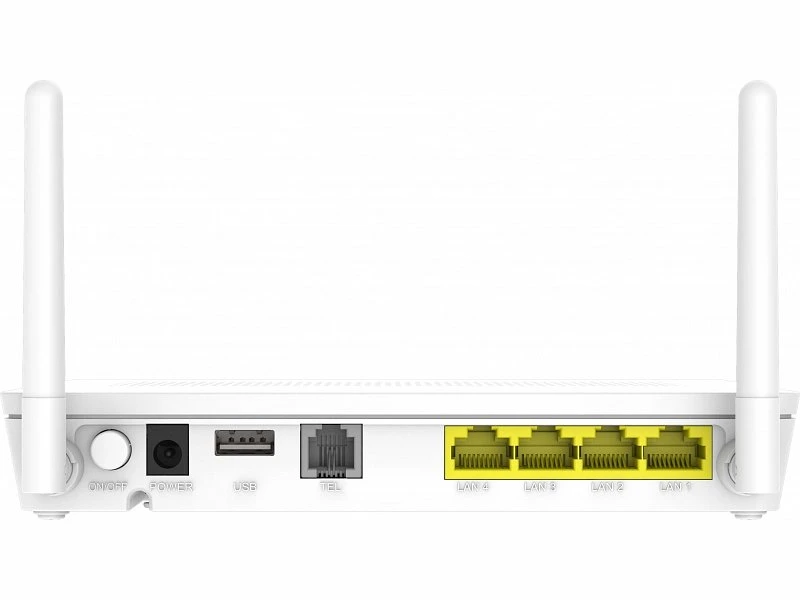

Huawei HG8546M XPON FIBER OPTIC WIFI ROUTER Available at Best Price In Pakistan on Global Computers
Huawei HG8546M XPON FIBER OPTIC WIFI ROUTER
The Huawei HG8546M, Optical Network Terminal (ONT), is a high-end residential gateway in the Huawei FTTH solution. By using XPON SC/UPC technology, access to ultra-wideband Internet is provided to home and SOHO users. HG8546M has 1 POTS phone port, 1 GE Gigabit port + 3 FE fast Ethernet ports, and 1 USB port. It enables wireless WiFi transmission in the 2.4 GHz band, according to IEEE 802.11 b/g/n standards. Maximum wireless transmission capacity is 300 Mbps, the device has two external antennas with 2 dBi gain each. Therefore, H8546M provides an ideal terminal solution and support for future FTTH implementation. The offered product is perfect for homes and small businesses, providing reliable service. Included with the device is a DC 12V 1A power supply with a European plug (no adapters!).
Key features of Huawei EchoLife HG8546M Gpon Onu
- XPON ONT terminal
- XPON SC/UPC port
- 1 Gigabit Ethernet port
- 3 Fast Ethernet ports
- 1 USB port
- 1 phone port (POTS)
- possibility of WiFi network transmission in 2.4 GHz band
- maximum wireless transmission speed 300Mbps
- two external antennas with 2 dBi gain each
SPECIFICATION
| Features / filters | |
| Number of LAN ports | 4x 10/100BaseTX (RJ45) |
| PON standard | XPON |
| Wireless network standards | IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, |
| USB port | 1x USB |
| VoIP ports | 1x POTS |
Technical specifications of Huawei Echolife HG8546M Gpon onu WiFi subscriber terminal
| Interfaces | |
| GPON port | 1 SC/UPC XPON port Class B+ Sensitive reception: -27 dBm Wavelength: US 1310nm, DS 1490nm WBF Flexible mapping between the GEM and TCONT ports G.984.3 Double-sided FEC SR-DBA and NSR-DBA |
| Ethernet port | 1 port 10/100/1000BASE-T (RJ45); 3 ports 10/100BASE-T (RJ45) Transparent VLAN transmission |
| POTS port | Maximum REN: 4 G.711A/u, G.729a/b and G.722 T.30 / T.38 / G.711 fax DTMF Emergency calls (via SIP protocol) |
| USB port | 1 USB 2.0 port Possibility to create a network drive based on FTP |
| WLAN | IEEE 802.11 b/g/n 2×2 MIMO Antennas with 2 dBi gain WMM Many SSIDs WPS |
| Connection type | SC/UPC |
| Physical characteristics | |
| Dimensions | 176x138x28 mm (without antenna) |
| Weight | < 500 g |
| Permissible operating temperature | 0 to 40 degrees C |
| Permissible air humidity | 5%-95% RH non-condensing |
| Power input | 100 – 240 V AC, 50-60 Hz |
| System power supply | 11 – 14 V DC, 1 A |
| Static power consumption | 4.5 W |
| Maximum power consumption | 12 W |
| LEDs | POWER / PON / FATE / LAN / TEL / USB / WLAN / WPS |
| Functionality | |
| Intelligent connection | Intelligent WIFI coverage (support V300R015C10) Adaptive SIP / H.248 Any port Any service Parental control (support V300R015C10) |
| Intelligent operation and maintenance | OMCI Active passive ONT detection and isolation Call up simulation / internal test, external PPPoE / DHCP simulation test WLAN simulation |
| Multicast | IGMP v2 / v3 snooping IGMP v2 proxy server IGMP v3 proxy server (support V300R015C10) MLD v1 / v2 snooping WIFI provides multicast services |
| QoS | Ethernet port speed limit Priority 802.1 SP/YYYY / SP + YYYYY Limit on packet transmission speed |
| O & M | OMCI / Web UI / TR069 Double backup and restore software |
| Security | SPI firewall Anti-DoS attack MAC / IP / URL filtering |
SUPPORT
Technical specification of Huawei HG8546M Xpon
Huawei HG8546M XPON ONT WIFI ROUTER
